WNA & WFA/IWA/MX Series/Mini Series 시추공탐사용 윈치 Logging Winches
- 길이와 휴대성에 따라 다양하게 선택 가능
- 케이블 두께, 길이 선택 가능
- 로깅 속도 조절에 용이
Information

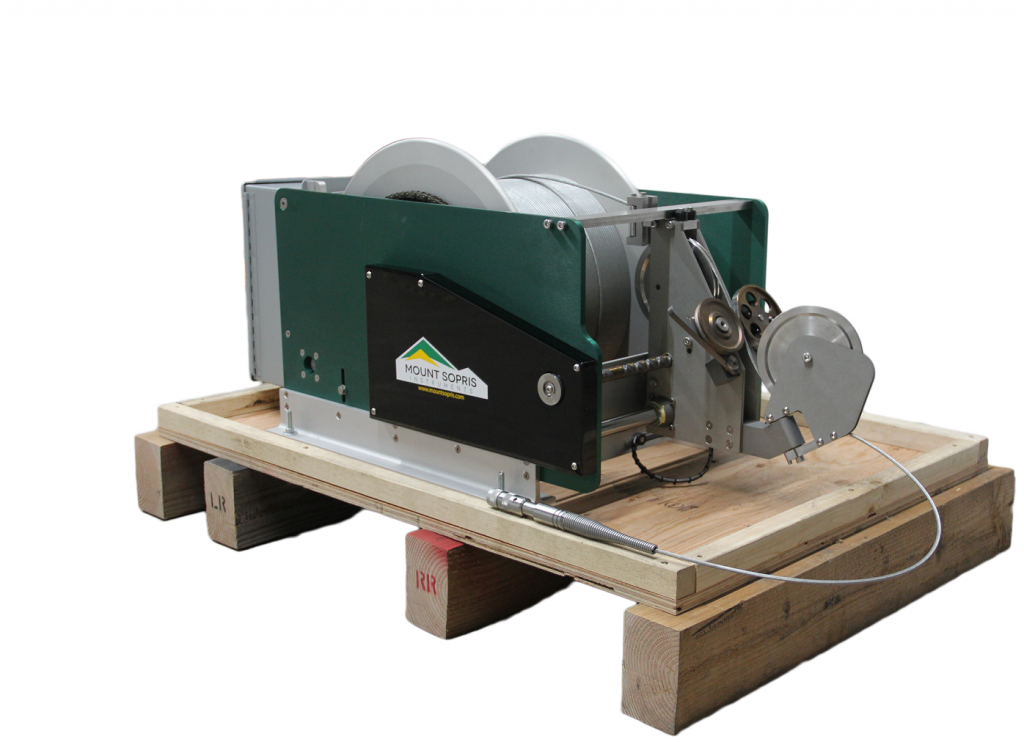

| WNA and WFA Truck-Mounted Winches | |
|---|---|
| Motor | 1 or 2 HP, SCR type |
| Controller | SCR controller, with 10 Amp current limit |
| Depth Encoder | BEI Model H20 (200 pulses/turn) standard, others available. |
| Wireline Tolerance | Supports Single Conductor, Coaxial, and Multi-Conductor Cables |
| Winch Size | 114 x 52 x 66 cm (45 x 20.25 x 26 in.) |
| Winch Weight without Cable | 110 kg (242 lbs) |
| Cable off-axis Tolerance | 20° left, 20° right, 15° down, 90° up |
| IWA | Mount Sopris Intelligent Winch Assembly |
| Motor | 6 HP, servo type |
| Speed | 0 – 55 m/min (0 – 183 ft/min) |
| Cable Capacity | (3/16” cable) 2,500 m (8,200 ft) |
| Weight (full drum of cable) | 716 kg (1,580 lbs) |
| Dimensions | 1.15 x 0.94 x 0.81 m (45.5 x 37 x 32 in.) |
| Power | 230VAC 50/60Hz, Single phase |
| Gear Box | Ratio 78:1 max, Input to shaft 2600 RPM. Direct drive to cable drum. |
| Level-Wind drive | Servo driven. Electronically calibrated to drum width and cable diameter. |
| Operating Temperatures | IWA: -15 to 40 °C (5 to 104 °F) Control Enclosure: 0 to 40 °C (32 to 104 °F) Display Enclosure: 0 to 50 °C (32 to 122 °F) |
| Storage Temperature | -25 to 70 °C (-13 to 158 °F) |

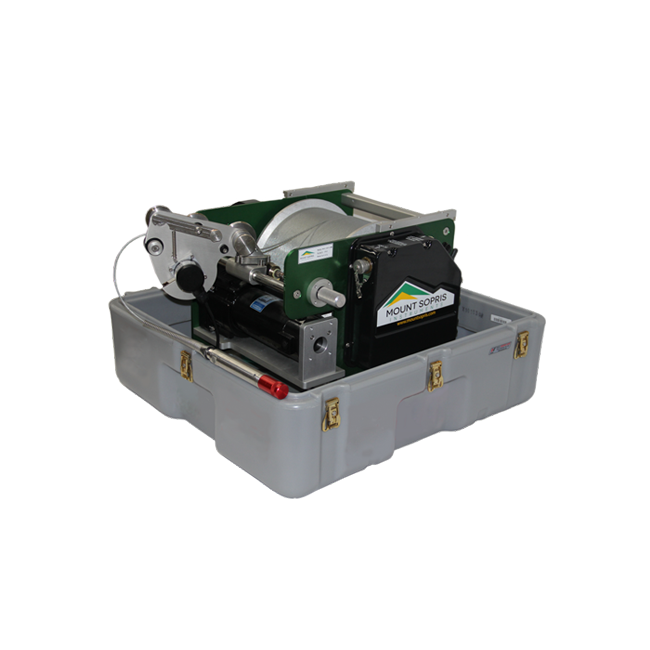

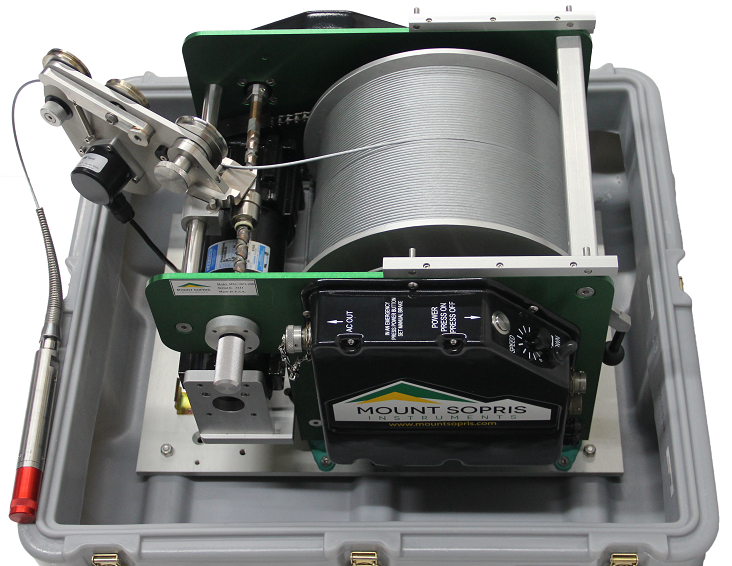

| MX Series | Semi-Portable Winches |
| Motor | 1/4 hp, SCR type |
| Controller | 4 Quadrant, with current limit |
| Speed | 0 to 26 m/min (85 ft/min) |
| Load | 46 kg (100 lbs) |
| Cable Capacity | MXA: 500 m (1640 ft) 1/8 in. (3.17 mm) diameter single conductor cable MXB: 480 m (1575 ft) 3/16 in. (4.76 mm) diameter single, coaxial, or four conductor cable MXC: 1000 m (3281 ft) 1/8 in. (3.17 mm) diameter single conductor cable |
| Shipping Weight | MXA with 500 m of 1/8 in. (3.17mm) diameter cable = 70 kg (155 lbs) MXB with 480 m of 3/16 in. (4.76mm) diameter cable = 98 kg (217 lbs) MXC with 1000 m of 1/8 in. (3.17mm) diameter cable = 105 kg (233 lbs) |
| Winch Size | MXA: 40.6 x 52 x 30.5 cm (16 x 20.5 x 12 in.) MXB or MXC: 40.6 x 55.9 x 38.8 cm (16 x 22 x 14.5 in.) Case Size: 66 x 66 x 61 cm (26 x 26 x 24 in.) |
| Cable off-axis Tolerance | 10° left, 10° right, 12° down, 45° up |
| Depth Encoder | Quadrature 200 pulses/turn standard, others available. |

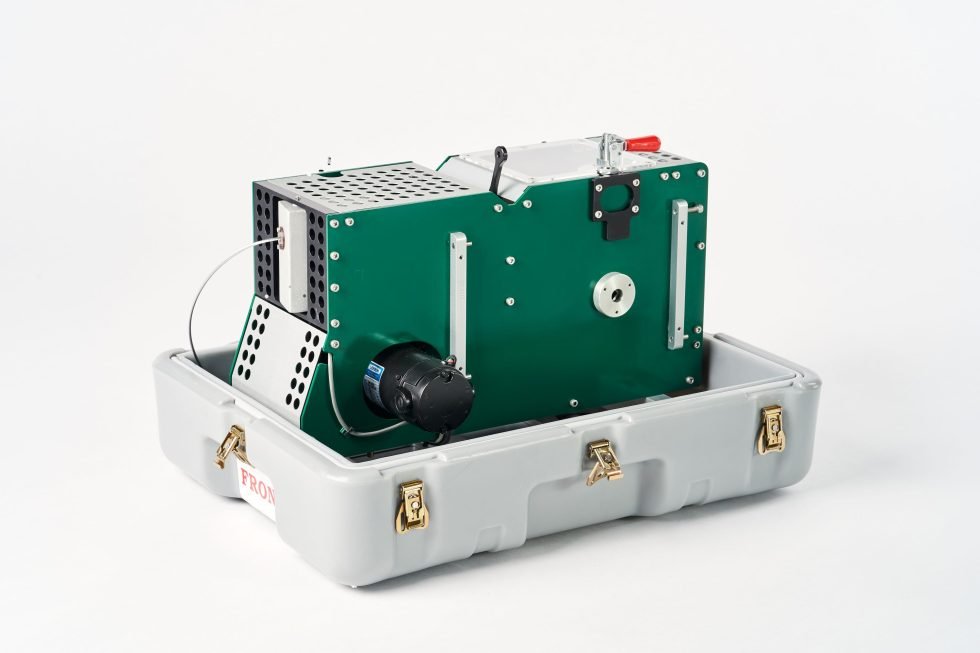

| Mini Series | Portable Winches |
| MW-1-0-7-3-200 | Spooled with 200 meters of 3.17 mm (0.125 in.) diameter single conductor wireline, 120vac. |
| MW-2-0-7-3-200 | Spooled with 200 meters of 3.17 mm (0.125 in.) diameter single conductor wireline, 220vac. |
| MW-1-0-7-5-305 | Spooled with 305 meters of 2.54 mm (0.100 in.) diameter single conductor wireline, 120VAC. |
| MW-2-0-7-5-305 | Spooled with 305 meters of 2.54 mm (0.100 in.) diameter single conductor wireline, 220VAC. |
