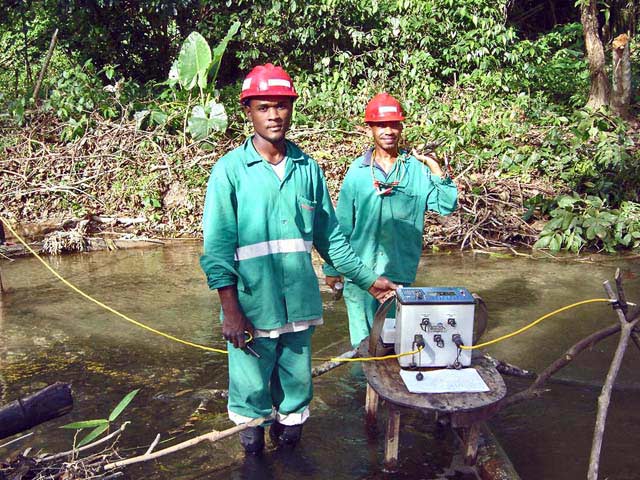

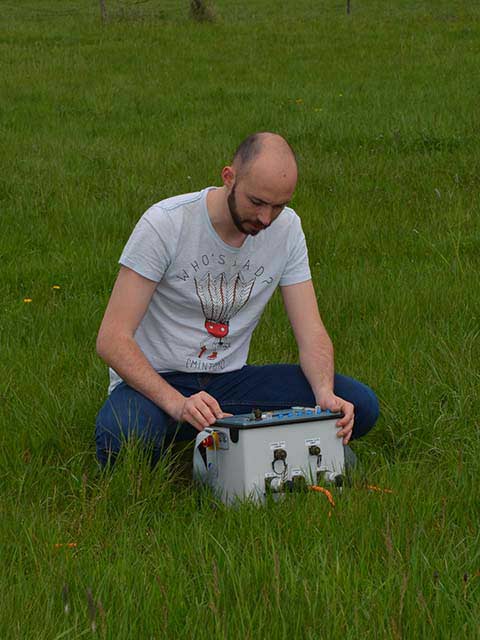

Syscal Pro Switch 수동/자동 전기탐사장비 Syscal Pro Switch Resistivity sounding and imaging system
#재해예방계측사업
-전기비저항, IP, SP 탐사 활용 가능
-내장형 SwitchBox로 편리
-다양한 전기 탐사 배열 이용 가능
-WiFi 환경에서 원격으로 제어 가능
Information
| <<TRANSMITTER>> | |
|---|---|
| Max voltage | 800V in switch mode |
| Max voltage | 1 000V in manual mode |
| Max current | 2.5A, typ. accuracy 0.2% |
| Max power | 250W with internal DC/DC converter and 12V external battery; 1200W with external AC/DC and Motor Gene. |
| Pulse duration | 0.2s, 0.5s, 1s, 2s, 4s, 8s |
| Internal | 12V, 7Ah battery, plug for ext. batt. |
| <<RECEIVER>> | Automatic ranging, 10 true differential input channels |
| Input impedance | 100 Mohm |
| Max input voltage | 15V |
| Protection | up to 1 000V |
| Typ accuracy | 0.2%, resolution: 1 microV |
| <<GENERAL>> | |
| Memory | 44 800 readings USB & SD card link (7000000 readings in option) |
| GPS input for coordinates | |
| Fiber glass casing | |
| weather proof | |
| Temperature range | 20 to +70°C |
| Syscal Pro Sw 48 | 31x23x36cm |
| Weight | 13kg, Cable w/ 24 |
| take-out | 23kg |
