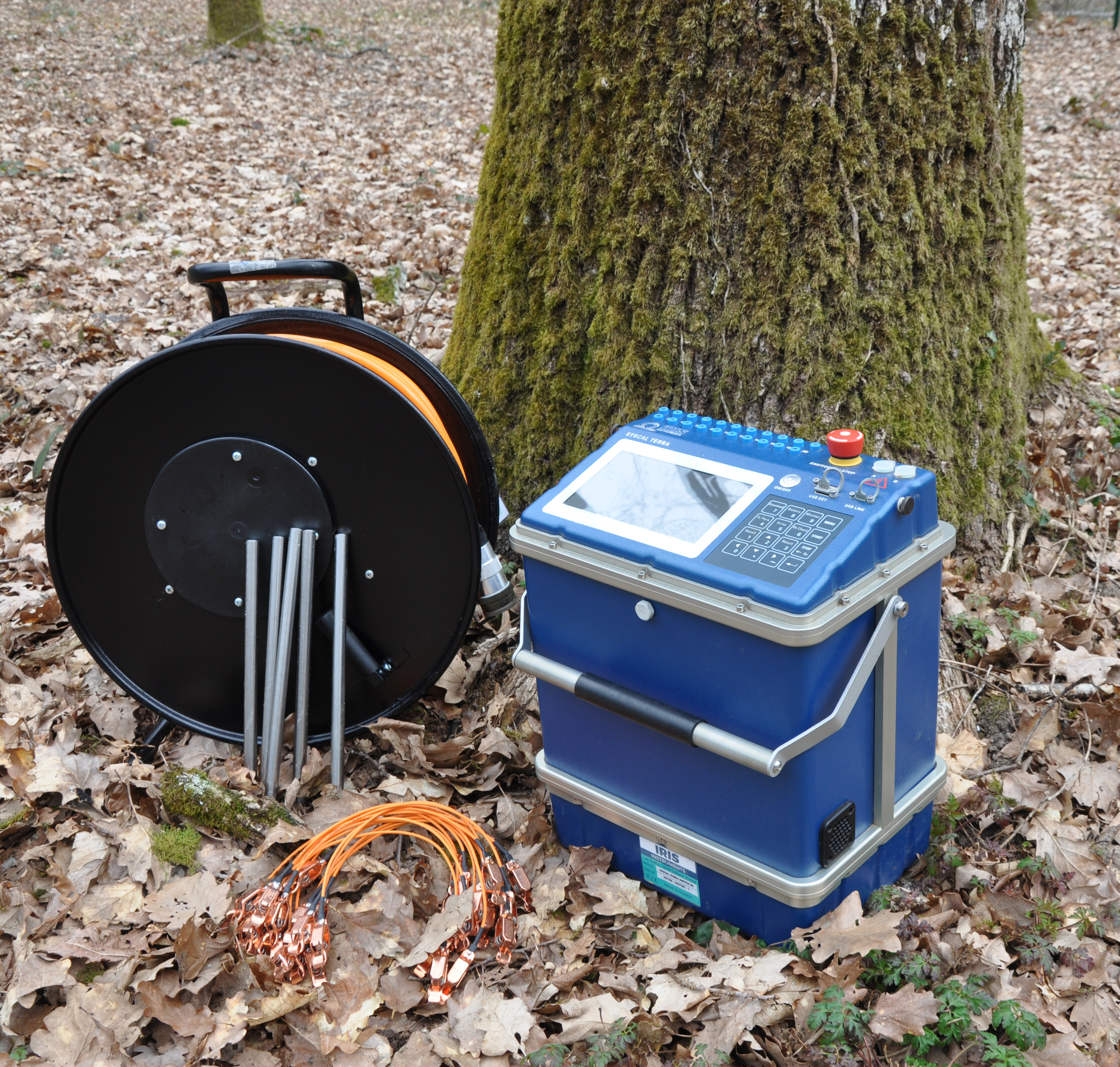

Syscal Terra 수동/자동 전기탐사장비 Syscal Terra A new generation of Resistivity & IP surveying system
-20 channels, 48 to 120 switches
-Resistivity & IP 탐사 장비

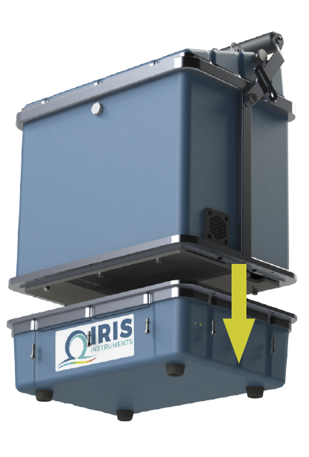

-배터리 탈부착 및 휴대성 용이
-자체 시스템 진단 가능

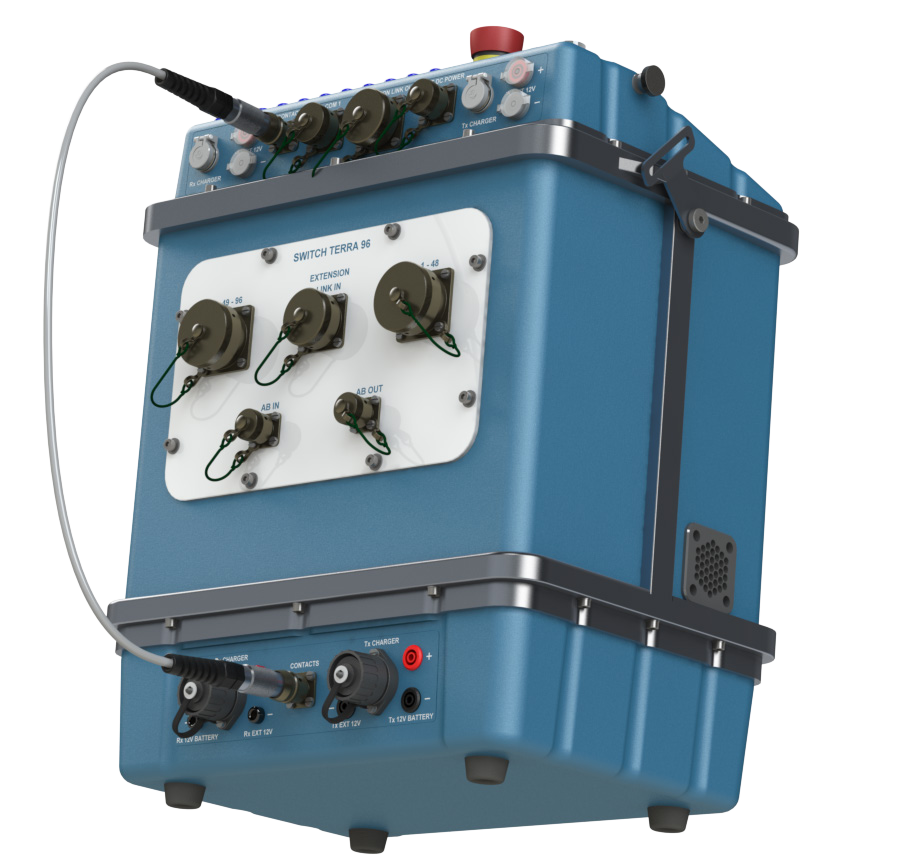

-Syscal Terra/Switch Terra 에 멀티 구성 가능
Information
| GPS | Internal GPS for a simplified management of the global (UTM) coordinates. |
|---|---|
| Memory | 2 Gb + USB ports for external memory (1 Tb). |
| Temperature range | -20°C - +70°C on external batteries. |
| Sequence | Can be imported f rom a PC (Electre Pro) or created directly in the Syscal. |
| Screen | 7 inches 480 x 800 color touch screen (touch screen can be disabled). |
| Weight | Syscal Terra Switch 96: 15.5 Kg with internal batteries. |
| Dimensions | Syscal Terra Switch 96: 45 cm x 37 cm x 24 cm. |
| Maximum voltage | 800 V in ERT mode / 1000 V in VES mode. |
| Maximum power | 250 W / 1200 W with external AC/DC generator |
| Maximum Current | 2.5 Amp. |
| Number of measurement channels | 20 channels galvanically isolated |
| AD Converter / Dynamic range | 24 bits / ≈ 30 bits G.B.D. |
| Input impedance | 100 MΩ G.B.D. |
| Max voltage | 15 V on Channel 1 & 15 V on the sum of channel 2 to 20 |
| Input protection | 1000 V |
